Parameters |
Image Sensor |
1/2.8 inch high quality HD CMOS sensor |
Effective Pixel |
2.07M, 16:9 |
Video Format |
HDMI:1080P60/50/30/25/59.94/29.97, 1080I60/50/59.94, 720P60/50/59.94/
U3:
1)U3: 1920X1080P60/50/30/25, 1280X720P60/50/30/25, 960X540P30,
640X360P30, 640X480P30, 352X288P30, 800*600P30
2)U3 compatible with U2:960X540P30, 640X360P30, 1280X720P10/15,720X576P50,
720X480P60, 640X480P30, 352X288P30, 800*600P30.
U2:320x240/352x288/640x480/704x576/720x480/720x576/640x360/800x448/
800x600/960x540/1024x576/1024x768/1280x720/ 1920x1080P30/25/20/15/10/5 |
Optical Lens |
f=5.5~110mm |
Viewing Angle |
3.3°(N) 54.7°(W) |
Iris |
F1.6 – F3.5 |
Digital Zoom |
10X |
Minimum Illumination |
0.5Lux(F1.8, AGC ON) |
DNR |
2D﹠3D |
White Balance |
Auto/Manual/One-push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
Focus |
Auto/Manual/One-push |
Iris |
Auto/Manual |
Electronic Shutter |
Auto/Manual |
BLC(Backlight Compensation) |
On/Off |
Dynamic Range |
Off/ Dynamic level adjustment |
Video Adjustment |
Brightness, Contrast, Sharpness, Horizontal Flip, Vertical Flip, Black and White Mode, Gamma Curve,
Electronic Zoom, DCI, Ultra Low Light Mode |
SNR |
>55dB |
Interface |
Interface |
HDMI, LAN, RS232, A-IN, U2, U3 |
Video output |
HDMI, USB3.0, LAN, USB2.0 |
Image Streaming |
Dual streaming output |
Video compression formats |
H.265, H.264
USB 2.0:MJPG、H264、H.265、YUY2、NV12 |
Audio IN Jack |
A-IN: Dual audio channel 3.5mm linear input |
Audio compression format |
AAC, MP3, G.711A |
Network Jack |
100M(10/100BASE-TX) |
Network Protocols |
RTSP, RTMP, ONVIF, GB/T28181;Support network VISCA control protocols, remote upgrade, remote restart, and remote reset |
Control Jacks |
RS232(loop in/out) |
Control Protocols |
Protocols:VISCA/Pelco-D/Pelco-P;Baud Rate:115200/38400/9600/4800/2400 |
Power Jack |
HEC3800 power socket(DC12V) |
Power Adapter |
Input: AC110V-AC220V Output: DC12V/1.5A |
Input Voltage |
DC12V±10% |
Input Currency |
1A(Max) |
Power Consumption |
12W(Max) |
PTZ |
Pan |
-170°~+170° |
Tilt |
-30°~+90° |
Pan Speed |
0.1 ~60°/s |
Tilt Speed |
0.1~30°/s |
Preset Speed |
Pan:60°/s, Tilt:30°/s |
Preset Quantity |
User can set 255 presets (10 via IR remote control) Pan:60°/s, Tilt:30°/s |
Others |
Storage Temperature |
-10℃~+60℃ |
Storage Humidity |
20%~95% |
Working Temperature |
-10℃~+50℃ |
Working Humidity |
20%~80% |
Dimension |
150mm X 150mm X 167.5mm |
Weight |
1.4kg |
Environment |
Indoors |

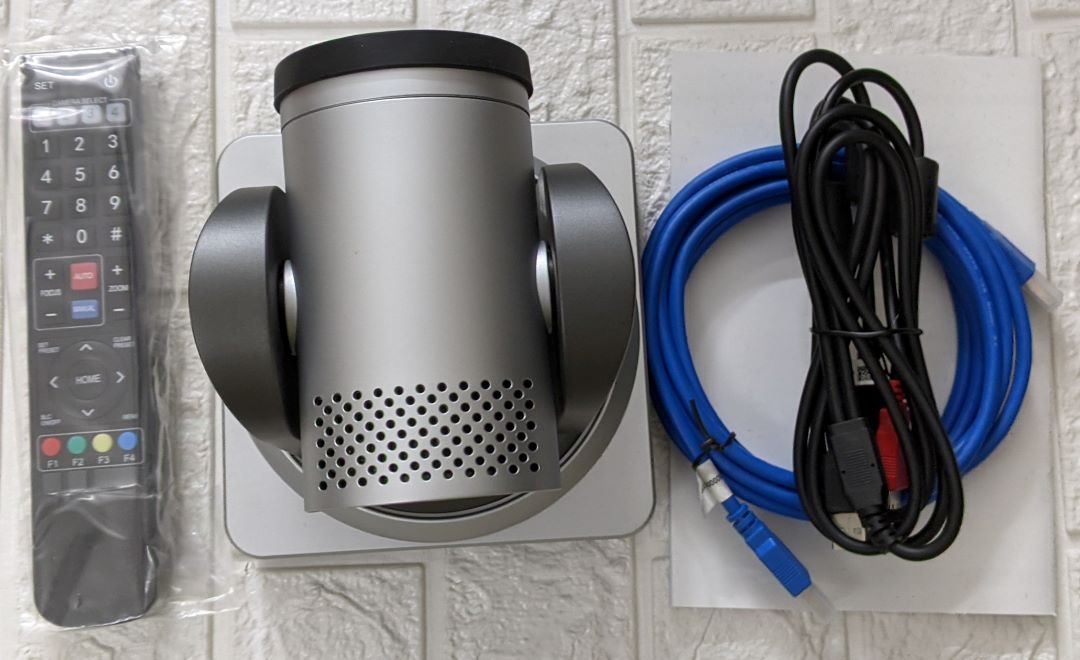

Accessory |
Supplied Accessories |
12V/1.5A power supply, RS232 cable, IR remote control, user manual |
Optional Accessories |
Mounting Brackets |
