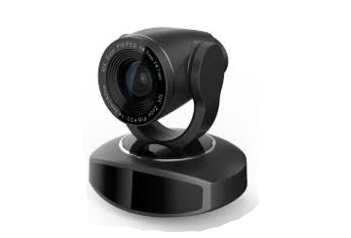

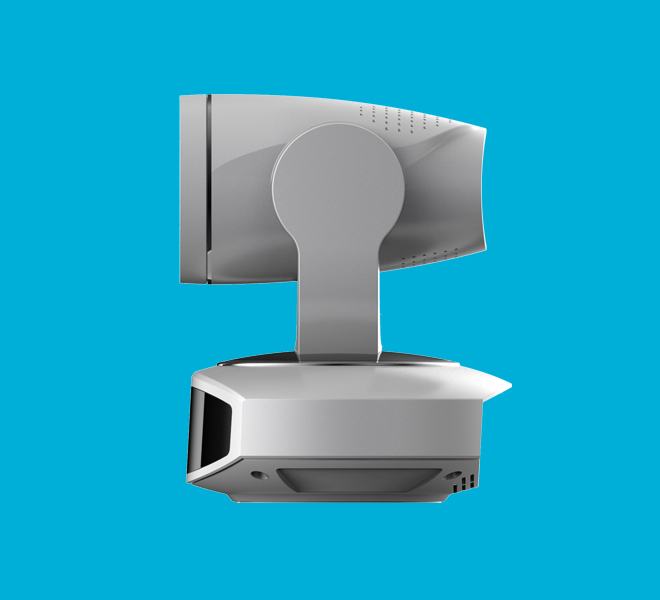

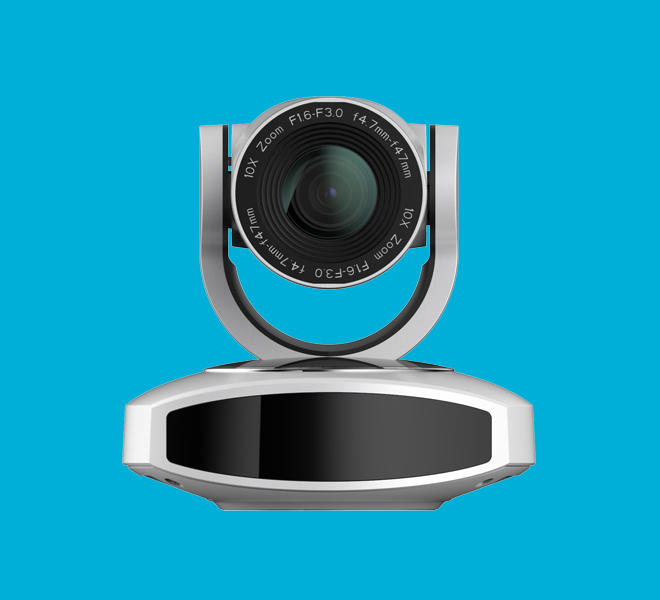

Model Number
|
UV540-05
|
UV540-10
|
Camera Parameter
|
Image Sensor
|
1/2.8Inch High Quality CMOS Sensor
|
Effective Pixels
|
2.07MP, 16:9
|
Video Format
|
SDI/HDMI Video Output Format
1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97
USB3.0 Video Output Format
1)USB3.0:1920X1080P60/50/30/25; 1280X720P60/50/30/25; 960X540P30; 640X360P30; 640X480P30; 352X288P30; 960X540P30; 800X600P30
2)USB3.0(USB2.0 Supported); 960X540P30; 640X360P30; 1280X720P10/15; 720X576P50;
720X480P60; 640X480P30; 352X288P30
USB2.0 Video Output Format:176×144/320×240/320×180/352×288/640×480/720×480/720×576/
640×360/800X600/960X540/1024X576/1024X768/1280X720/1920X1080
P30/25/20/15/10/5
|
Optical Lens
|
5X Optical Lens
f=3.1~15.5mm
|
10X Optical Lens
f=4.7~47mm
|
View Angle
|
20°(Tele)
83.7°(Wide)
|
6.43°(Tele)64.2°(Wide)
|
Iris
|
F1.8 – F2.8
|
F1.6 – F3.0
|
Digital Zoom
|
X5
|
Low Illumination
|
0.5Lux(F1.8, AGC ON)
|
DNR
|
2D﹠3DDNR
|
White Balance
|
Auto / Manual/ One Push//3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
|
Focus
|
Auto / Manual/ One Push/
|
Electronic Shutter
|
Auto / Manual/
|
BLC
|
On/Off
|
WDR
|
OFF/ Dynamic Level Adjustment
|
Video Adjustment
|
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
|
SNR
|
>55dB
|
Interface and Protocol
|
Model No/Interface
|
UV540-05/10-SDI Interface:SDI, LAN, RS232(Input), A-IN
UV540-05/10-HDMI Interface:HDMI, LAN, RS232(Input), A-IN
UV540-05/10-HD-BaseT Infterface: HDBaseT, LAN, RS232(Input), A-IN
UV540-05/10-U3 Interface:USB3.0, LAN, RS232(Input)
UV540-05/10-U3+HDMI Interface:USB3.0, HDMI, LAN, RS232(Input)
UV540-05/10-U2 Interface:USB2.0, LAN, RS232(Input)
|
Video Output
|
SDI, HDMI, USB3.0, USB2.0, LAN
|
Video Stream
|
Dual Stream
|
Image Multi Code Source Output
|
Supported (SDI/HDMI/USB3.0/USB2.0, LAN can be with different Code Source)
|
Video Compression
|
H.265、H.264
|
Audio Compression Format
|
A-in: Double track 3.5mm linear input;
|
Aiduo Output
|
SDI, HDMI, LAN
|
Audio Compression Format
|
AAC, MP3, G.711A
|
LAN
|
100M LAN Port(10/100BASE-TX)
|
Network Protocol
|
RTSP, RTMP, ONVIF, GB/T28181; Support VISCA Control Protocol, Support Remote Update and Reset
|
Control Port
|
RS232(Circuit)、RS485
|
Control Protocol
|
Protocol:VISCA/Pelco-D/Pelco-P;Baud Rate:115200/9600/4800/2400bps
|
Power Supply
|
HEC3800 Outlet(DC12V)
|
Power Adapter
|
Input AC110V-AC220V, output DC12V/1.5A
|
Power Input
|
DC12V±10%、1A(Max)
|
Power Consumption
|
12W(Max)
|
PTZ Parameter
|
Pan/Tile Rotation
|
-170°~+170°、-30°~+90°
|
Pan/Tile Controller Speed
|
0.1 ~60°/Second, 0.1~30°/Second
|
Preset Speed
|
Pan:60°/Second,Tilt:30°/Second
|
Preset Numbers
|
255 Points Preset(10 points By Remote Controller)
|
Other Parameter
|
Storage Temperature
|
-10℃~+60℃、20%~95%
|
Working Temperature
|
-10℃~+50℃、20%~80%
|
Dimension
|
151.2mmX152.5mmX126.7mm
|
Weight
|
1.4kg
|
Usage
|
Indoor Only
|
Package
|
12V/1.5A Power supply, Remote Controller, Manual, Warranty Card
|
Accessories Optional
|
Mount (Extra Cost)
|
